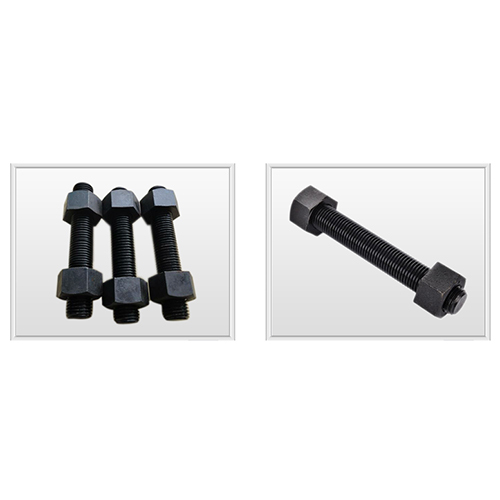

Stud With Nut A193 GR B7 A194 2H & A193 B8M

Stud With Nut A193 GR B7 A194 2H & A193 B8M Price And Quantity

• Minimum Order Quantity 100 Kilograms
• Price 140 INR/Kilograms

• Standards ASTM A193, ASTM A194, ASME B16.5, DIN & ISO equivalents as required
• Packing Cartons, Wooden Boxes, Bundles, as per customer requirement
• Nut Specification ASTM A194 Grade 2H (carbon steel), compatible with B7 & B8M studs, heavy hex type
• Corrosion Resistance B7: Moderate; B8M: Excellent (Stainless Steel, ideal for corrosive/chemical environments)
• Thread Type Unified National Coarse (UNC), Unified National Fine (UNF), Metric Coarse, Metric Fine
• Yield Strength B7: min 105 ksi (720 MPa); B8M: min 30 ksi (205 MPa)
• Surface Hardness B7: HRC 35 max; B8M: As per standard, non-hardening
• Temperature Range B7: Up to 450C (840F); B8M: Up to 870C (1600F)
• Applications Pressure vessels, pipelines, petrochemical & power plants, flanges & fittings
• Tensile Strength B7: min 125 ksi (860 MPa); B8M: min 75 ksi (515 MPa)

Stud With Nut A193 GR B7 A194 2H & A193 B8M Product Specifications

• Head Type Stud (Threaded both ends, no head)
• Head Size Custom per specification (No standard hex head, threaded rod type)
• Weight Varies by diameter and length; custom specified per order
• Finish Self-Color (Natural), Black Oxide, Hot Dip Galvanized, Zinc Plated as per requirement
• Dimensions Metric and Imperial sizes available, as per drawing or standard
• Material ASTM A193 Grade B7 / A194 2H / A193 B8M (Alloy Steel, Stainless Steel)
• Length Up to 6 meters or as specified
• Heat Treatment Quenched & Tempered for B7; Solution Annealed for B8M
• Diameter 1/4 to 4 (6mm to 100mm)

• Standards ASTM A193, ASTM A194, ASME B16.5, DIN & ISO equivalents as required
• Packing Cartons, Wooden Boxes, Bundles, as per customer requirement
• Nut Specification ASTM A194 Grade 2H (carbon steel), compatible with B7 & B8M studs, heavy hex type
• Corrosion Resistance B7: Moderate; B8M: Excellent (Stainless Steel, ideal for corrosive/chemical environments)
• Thread Type Unified National Coarse (UNC), Unified National Fine (UNF), Metric Coarse, Metric Fine
• Yield Strength B7: min 105 ksi (720 MPa); B8M: min 30 ksi (205 MPa)
• Surface Hardness B7: HRC 35 max; B8M: As per standard, non-hardening
• Temperature Range B7: Up to 450C (840F); B8M: Up to 870C (1600F)
• Applications Pressure vessels, pipelines, petrochemical & power plants, flanges & fittings
• Tensile Strength B7: min 125 ksi (860 MPa); B8M: min 75 ksi (515 MPa)

Stud With Nut A193 GR B7 A194 2H & A193 B8M Trade Information

• Supply Ability 1000 Kilograms Per Month
• Delivery Time 7 Days
